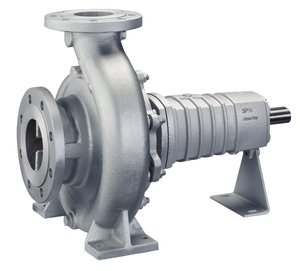

Centrifugal pump for ethylene glycol water solution, thermal oil, hot water
| CombiTherm | Technical Data |
|---|---|
| Casing: | Nodular cast iron |
| Impeller: | Cast iron, Stainless steel |
| Max. flow: | 350 m3/h / 1541 GPM [50Hz] 400 m3/h / 1761 GPM [60Hz] |
| Max. delivery head: | 110 m / 361 ft [50Hz] 160 m / 525 ft [60Hz] |
| Max. liquid temp: | Thermal oil 350 °C / 662 °F Hot water 190 °C / 374 °F |
| Max. pressure: | 16 bar / 232 psi |
| Max. speed: | 3600 rpm |

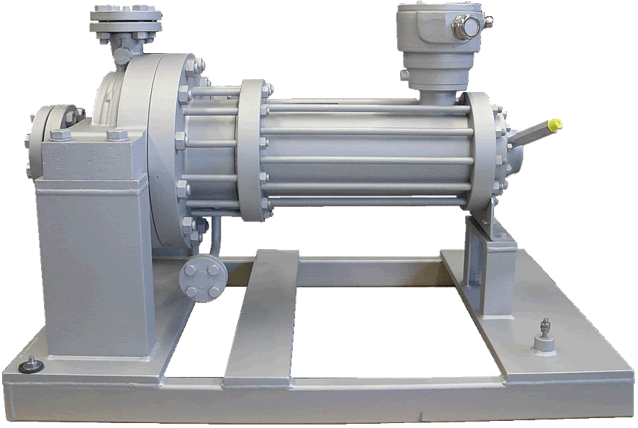

Centrifugal canned motor pump for ethylene glycol water solution, thermal oil, hot water
| Canned motor pump | Technical Data |
|---|---|
| Flow: | max. 1600 m³/h |
| Head: | 1100 m |
| Rotating speed: | 2900 to 3500 rpm |
| Operating temperature: | max. +400 °C |
| Viscosity: | max. 300 mm²/s |
| Pressure rating: | PN 16 to PN 100 |
