Sand and gravel

Pump excavator

Available suction sizes: DN200 to DN1100
Flow: up to 20,000 m3 / h
Nominal lifting height: low pressure pumps: 20-50m, medium pressure pumps: 35-70m, high pressure pumps: 60-100m
Buster container system
Mixture capacity: 1,000-12,000 m3 / h
Max lifting height: 80m
Drive: electric or diesel

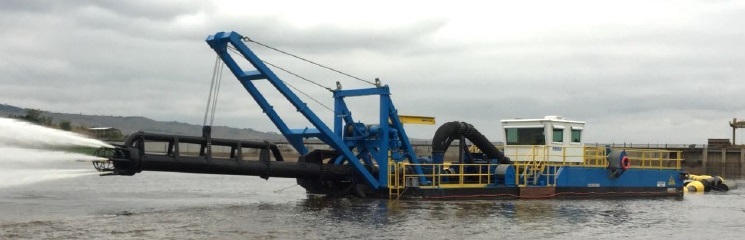

Suction dredgers

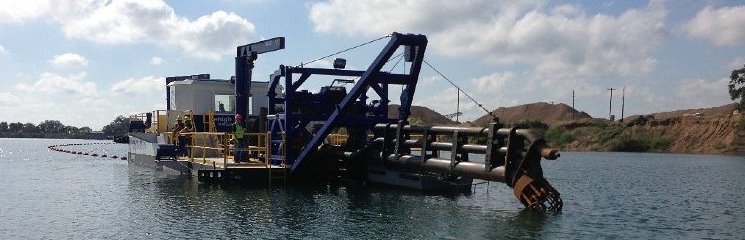

Floating suction dredgers
Drive: electric or diesel
Head with jet nozzles or additional digging tools

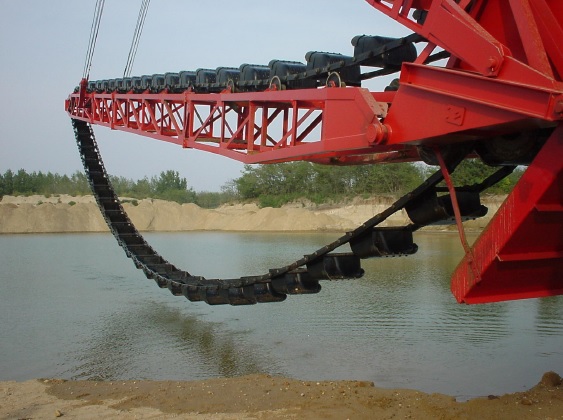

Bucket ladder dredger

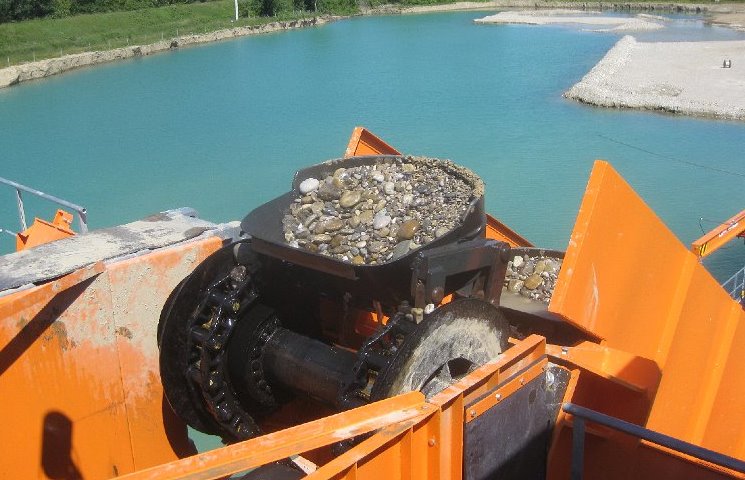

Bucket dredgers
typebasket capacity capacity power of the drive chain
KS 125125 l60-240 m3/h55 kW
KS 175175 l84-330 m3/h110 kW
KS 225225 l100-430 m3/h160 kW
KS 250250 l120-480 m3/h2×90 kW
KS 350350 l170-670 m3/h2×110 kW
KS 400400 l190-760 m3/h2×160 kW
max digging depth: 25 m

Landbased bucket ladder dredger
typebasket capacitycapacitypower of the drive chain
K75 R75 l36-144 m3/h45 kW
K125 R125 l60-240 m3/h55 kW
K175 R175 l84-340 m3/h75 kW
K200 R200 l96-385 m3/h90 kW
max digging depth: 14 m

Grab dredgers

Digging depth (m): 10-60
Grapple capacity (m3): 3.2 / 4.0 / 4.2 / 5.0 / 6.0 / 7.0 / 8.0 / 10/12/15
Type: Cantilever (AF) / Portal (BF) / Catamaran (PF)
