MUNSCH Kunststoff-Schweisstechnik GmbH is a manufacturer of state-of-the-art plastic welding machines and devices.
MUNSCH hand extruders for welding plastics are well known to professionals around the world. MUNSCH foil welding machines are known for their top quality, reliability and durability.
Hand extruder for welding plastic MAK-18
Max. welding capacity: 1.8 kg/h, Ø 4mm
1.1 kg/h, Ø 3 mm
Welding material: PP / PE / PVDF
Material type: Round rod Ø 3 / 4 mm
Application range: Thicknesses from 4 – 15 mm
Weight: 5.5 kg
Length: 470 mm
Electronic Speedcontrol: yes
Mass heating: 400 W
Powerbox needed: No
Preheating: 2300 W
- Brushless preheating blower
- Comfortable user menu with automatic temperature setting
- Four materials preset, more program spaces free to set your own material
- 360° turnable welding shoe
- Machine stand included

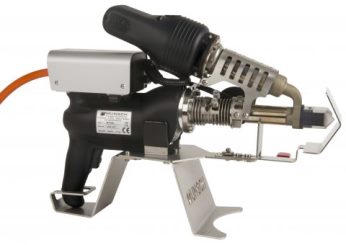

Manual extruder for welding plastic MAK-25
Max. welding capacity: 2.5 kg/h, Ø 4mm
1.4 kg/h, Ø 3 mm
Welding material: PP / PE / PVDF
Material type: Round rod Ø 3 / 4 mm
Application range: Thicknesses from 4 – 15 mm
Weight: 5.5 kg
Length: 470 mm
Electronic Speedcontrol: yes
Mass heating: 400 W
Powerbox needed: Yes
Preheating: 2300 W
- Brushless blower
- Brushless drive
- Comfortable user menu with automatic temperature setting
- Three materials preset, more program spaces free to set your own material
- 360° turnable welding shoe
- Machine stand included
- Speed can be varied via Powerbox and / or trigger

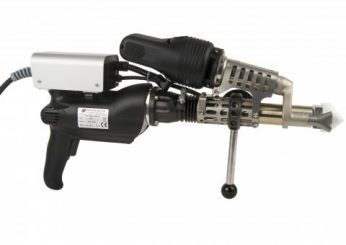

Manual extruder for welding plastic MAK-32-B
Max. welding capacity: 1.8 kg/h, Ø 3mm
3.2 kg/h, Ø 4 mm
Welding material: PP / PE / PVDF
Material type: Round rod Ø 3 / 4 mm
Application range: Thicknesses 8 – 25 mm
Weight: 7.6 kg
Length: 570 mm
Electronic Speedcontrol: Electronic, on the controller
Mass heating: 650 W
Powerbox needed: No
Preheating: 2300 W
- Brushless Autoairblower
- Digital control, separately for melt and preheating
- Comfortable menu guide with automatic temperature presetting
- Three materials preset, more program spaces free to set your own material
- 180° turnable handgrip (also usable for lefthanders)

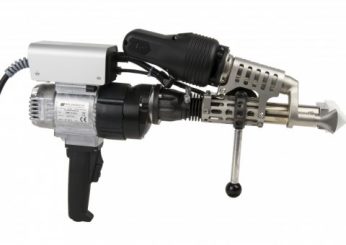

Manual extruder for welding plastic MAK-36-B
Max. welding capacity: 3.6 kg/h, Ø 5mm
2.0 kg/h, Ø 4 mm
Welding material: PP / PE / PVDF
Material type: Round rod Ø 4 / 5 mm
Application range: Thicknesses from 8 – 30 mm
Weight: 7.5 kg
Length: 570 mm
Electronic Speedcontrol: yes
Mass heating: 650 W
Powerbox needed: No
Preheating: 2300 W
- Brushless preheating blower
- Comfortable user menu with automatic temperature setting
- Three materials preset, more program spaces free to set your own material
- Machine stand included, mounted

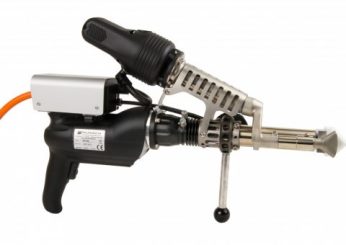

Manual extruder for welding plastic MAK-40-B
Max. welding capacity: 3.9 kg/h, Ø 5mm
2.5 kg/h, Ø 4 mm
Welding material: PP / PE / PVDF
Material type: Round rod Ø 4 / 5 mm
Application range: Thicknesses from 8 – 30 mm
Weight: 8.0 kg
Length: 570 mm
Electronic Speedcontrol: Yes
Mass heating: 650 W
Powerbox needed: Yes
Preheating: 2300 W
- Brushless blower
- Brushless drive
- Comfortable user menu with automatic temperature setting
- Three materials preset, more program spaces free to set your own material
- Machine stand included, mounted
- Speed can be varied via Powerbox and / or trigger
Manual extruder for welding plastic MAK-48-B
Max. welding capacity: 4.8 kg/h, Ø 5mm
3.2 kg/h, Ø 4 mm
Welding material: PP / PE / PVDF
Material type: Round rod Ø 4 / 5 mm
Application range: Thicknesses from 10 – 35 mm
Weight: 9 kg
Length: 570 mm
Electronic Speedcontrol: Yes
Mass heating: 650 W
Powerbox needed: No
Preheating: 2300 W
- Brushless blower
- Comfortable user menu with automatic temperature setting
- Three materials preset, more program spaces free to set your own material
- Machine stand included, mounted

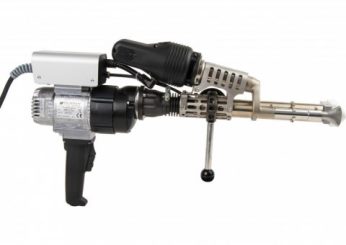

Manual extruder for welding plastic MAK-58-B
Max. welding capacity: 5.8 kg/h, Ø 5mm
3.8 kg/h, Ø 4 mm
Welding material: PP / PE / PVDF
Material type: Round rod Ø 4 / 5 mm
Application range: Thicknesses from 12 – 40 mm
Weight: 10.2 kg
Length: 700 mm
Electronic Speedcontrol: Yes
Mass heating: 800 W
Powerbox needed: No
Preheating: 2300 W
- Brushless blower
- Comfortable user menu with automatic temperature setting
- Three materials preset, more program spaces free to set your own material
- Machine stand included, mounted

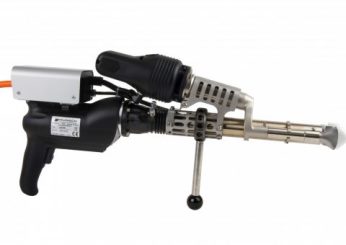

Rucni ekstruder za zavarivanje plastike MAK-65-B
Max. welding capacity: 6.5 kg/h, Ø 5mm
4.0 kg/h, Ø 4 mm
Welding material: PP / PE / PVDF
Material type: Round rod Ø 4 / 5 mm
Application range: Thicknesses from 12 – 40 mm
Weight: 9.4 kg
Length: 700 mm
Electronic Speedcontrol: Yes
Mass heating: 800 W
Powerbox needed: Yes
Preheating: 2300 W
- Brushless blower
- Brushless drive
- Comfortable user menu with automatic temperature setting
- Three materials preset, more program spaces free to set your own material
- Machine stand included, mounted
- Speed can be varied via Powerbox and / or trigger
Manual extruder for plastic welding GMAK-350-B (pellet filling)
Max. Welding capacity: 4.0 kg/h*
Welding material: PP / PE
Material type: Granulate
Application range: Thickness from 10 – 40 mm
Weight: 10.5 kg
Electronic Speedcontrol: Yes
Mass heating: 650 W
Powerbox needed: Yes
Preheating: 2300 W
* Depending on type and size of the granulate
- Brushless preheating blower
- Bruhsless drive
- Comfortable user menu with automatic temperature setting
- Two materials preset, more program spaces free to set your own material
- Machinestand included, fixed to the machine
- Display / Menu
- Temperatures can be set digitally
Manual extruder for plastic welding GMAK-420-B (pellet filling)
Max. Welding capacity: 5.0 kg/h*
Welding material: PP / PE
Material type: Granulate
Application range: Thickness from 10 – 40 mm
Weight: 12.8 kg
Electronic Speedcontrol: yes
Mass heating: 650 W
Powerbox needed: no
Preheating: 2300 W
* Depending on type and size of the granulate
- Brushless preheating
- Comfortable user menu with automatic temperature setting
- Three materials preset, more program spaces free to set your own material
- Machinestand included, fixed to the machine
Manual extruder for welding plastic GMAK-600-B (filling with granules)
Max. Welding capacity: 7.3 kg/h*
Welding material: PP / PE
Material type: Granulate
Application range: Thickness from 10 – 50 mm
Weight: 16.3 kg
Electronic Speedcontrol: yes
Mass heating: 800 W
Powerbox needed: yes
Preheating: 2300 W
* Depending on type and size of the granulate
- Bruhsless drive
- Comfortable user menu with automatic temperature setting
- Two materials preset, more program spaces free to set your own material
- Machinestand included, fixed to the machine
- Display / Menu
- Temperatures can be set digitally
MUNSCH MINI hand-held plastic welding extruder
Max. welding capacity: 0.6 kg/h, Ø 3mm
Welding material: PP / PE / PVDF / PVC e.g.
Material type: Round rod Ø 3 mm
Application range: Thicknesses up to 10 mm
Weight: 3.5 kg
Length: 450 mm
Electronic Speedcontrol: Electronically, on controller
Mass heating: 875 W
Drive: Brushed type
Preheating: 2300 W
This item is available in 110 or 220V.
- Compact design
- Brushless blower
- A lot of special materials weldable (see data sheet)
- Comfortable menu guide with automatic temperature adjustment
- Four materials preset, more program spaces free to set your own material
- Machine stand and transport case included
- Foldout side handle can be purchased additionally

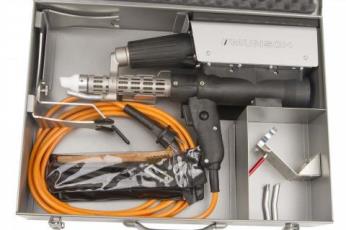

Manual extruder for welding MUNSCH MINI-PFA plastic
Max. welding capacity: 0.6 kg/h, Ø 3mm
Welding material: PFA / ECTFE
Material type: Round rod Ø 3 mm
Application range: Thicknesses up to 10 mm
Weight: 3.5 kg
Length: 450 mm
Electronic Speedcontrol: Electronically, on controller
Mass heating: 875 W
Drive: Brushed type
Preheating: 2300 W
This item is only available in 220V.
- Compact design
- Brushless blower
- A lot of special materials weldable (see data sheet)
- Comfortable menu guide with automatic temperature adjustment
- Four materials preset, more program spaces free to set your own material
- Machine stand and transport case included
- Foldout side handle can be purchased additionally
Handheld plastic air welding machine ML-1500
Power consumption: 1500W
Scope of supply: Hand welder ML-1500 Mini with hose and auto air blower
5mm nozzle round
- Very tight design
- No suction of fresh air near the welding area
- More accessories available on request

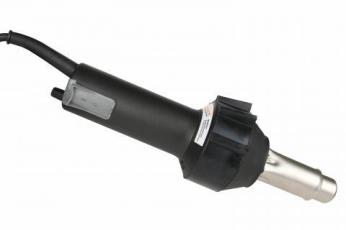

Manual hot air plastic welding machine MG-1500
With our MG-1500 you have a complete set for hot gas welding.
This set is also available for for landfill construction.
Manual hot air welding machine MG-1500 for containers
Power consumption: 1500W
Scope of supply container engineering: Hand welder MG-1500
Round nozzle 5mm
Speed nozzle 4mm
Tacking nozzle
Plastic case
- 1 case with all necessary tools
- Made in GERMANY
- More accessories available on request
- Available in 220V and 110V

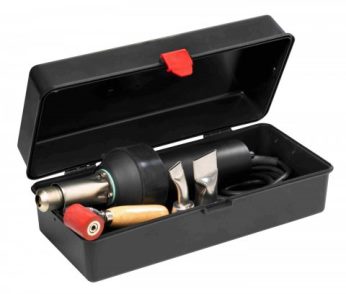

Manual hot air welding machine MG-1500 for foils
Power consumption: 1500W
Scope of supply landfill construction: Hand welder MG-1500
Wide slot nozzle 20mm
Wide slot nozzle 40mm
Silicon roller
Plastic case
- 1 case with all necessary tools
- Made in GERMANY
- More accessories available on request
- Available in 220V and 110V

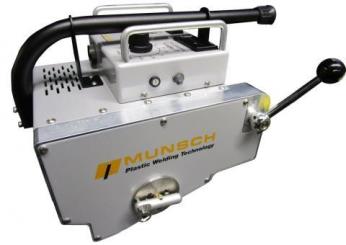

Wedge-It-PLUS foil welding machine
Welding speed: 0 – 6.5m/min
Welding material: PP / PE-HD / PVC
Material thicknesses: 1.0 – 2.5mm
Weight: 24.0 kg
Power consumption: 2120 W
- Simple and strong construction
- Presetting of all parameters possible
- Enormous heating capacity and therefore high welding speed
- Up t0 30% more welding speed than Wedge-It-2000 by better pressure rollers
- Transport case (trolley) included
Wedge-It-MULTI foil welding machine
Welding speed: 0 – 4.3m/min
Welding material: PP / PE-HD / PVC
Material thicknesses: 1.0 – 3.0mm
Weight: 19.0 kg
Power consumption: 1500 W
- Compact design
- Easy steering via menu
- Presetting of all parameters possible
- Automatic pressure setting via springs
- High pulling force by strong motor
- Backup and data evaluation via included SD flash memory and software
- Transport case included
Wedge-It-MULTI-ECO foil welding machine
Welding speed: 0 – 5m/min
Welding material: PP / PE-HD / PVC
Material thicknesses: 1.0 – 3.0mm
Weight: 19.0 kg
Power consumption: 1500 W
- Compact design
- Easy steering
- Presetting of all parameters possible
- Automatic pressure setting via springs
- High pulling force by strong motor
- Transport case included

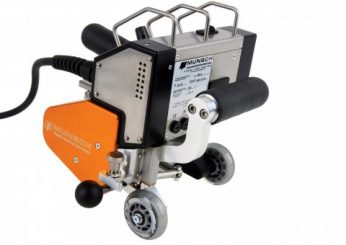

Wedge-It-Micro foil welding machine
Welding speed: 0 – 6m/min
Welding material: PP / PE-HD / PVC
Material thicknesses: 0.3 – 1.0mm
Weight: 7.5 kg
Power consumption: 1150 W
- Compact design
- Very low weight (7.5kg)
- Available in 220V or 110V
- Transport case included

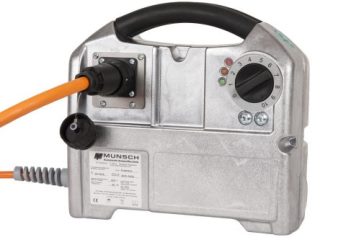

POWERBOX
Power consumption: Depending on the connected extruder
Voltage: 230V
Weight: 10kg
Dimensions: 300x200x300mm (LxWxH)
- Speed control of the extruder down to lowest speeds possible
- Overload protection (shown via LEDs)
- Can be used in a distance of max. 7.5m from the extruder

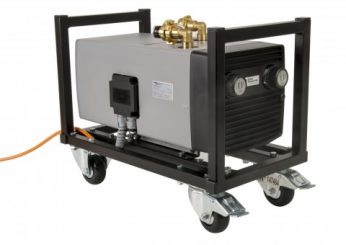

PICO COMPRESSOR
Power consumption: 1000W
Pressure / Vacuum: 0.6 bar
Voltage: 230V
Weight: 46kg
- Up to 0.6 bar Pressure / Vacuum
- 26m³ Airflow / h
- Wheeled baseframe

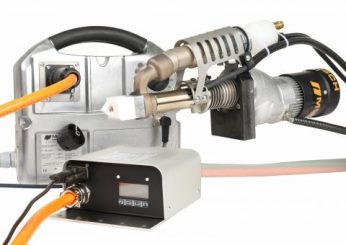

ROB EXTRUDER
Max. welding rate: 7.3 kg/h*
Welding material: PP / PE
Material type: Granulate / Rod
Application range: Thicknesses 10 – 50 mm
Weight: max. 16.3 kg
Electronic Speedcontrol: yes
Mass heating: 650 / 800 W
Powerbox needed: yes
Preheating: 2300 W**
* On Granulate Extruders depending on type and size of the granulate
** Extruder also available without preheating
- Brushless air heater
- Brushless drive
- Comfortable menu guide with automatic temperature setting
- Two materials preset, further spaces for own programming
- With Display / Menu
- Temperatures can be set digitally
- Including port for checking / adjusting set and present values, and more
pumps
